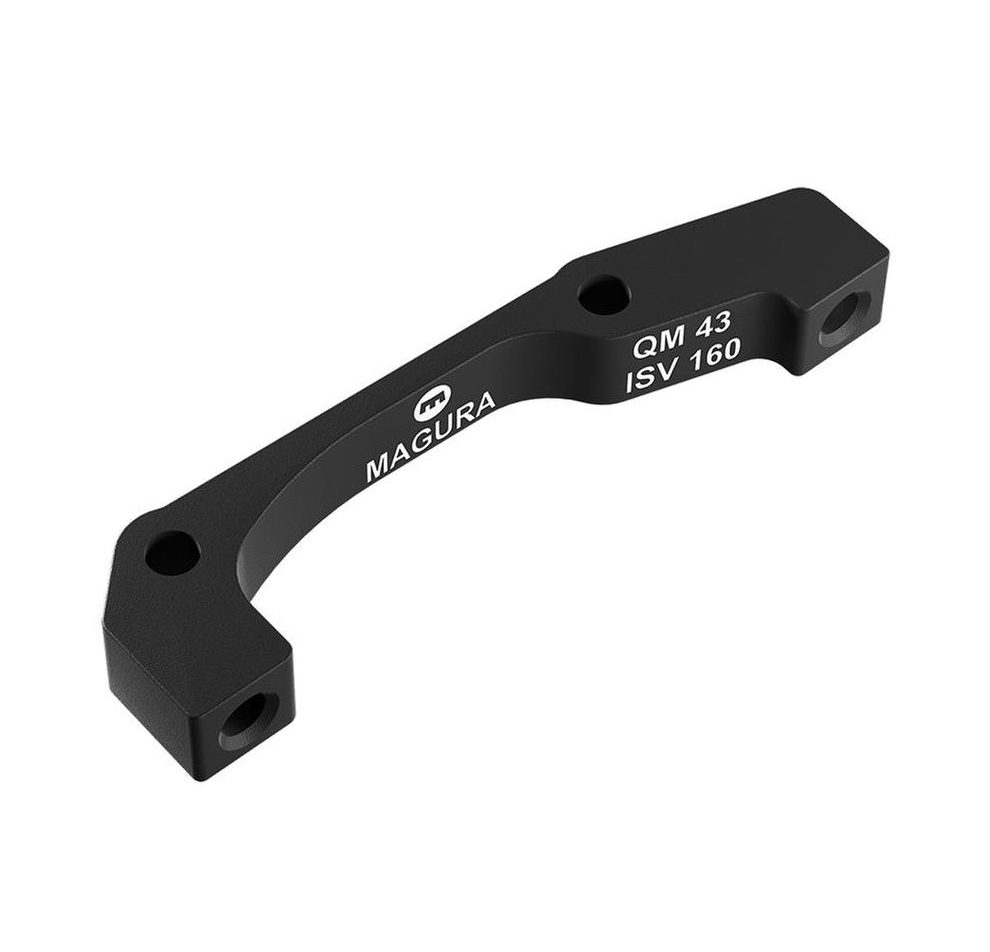

Magura IS To PM Forged Brake Mounts/Adapters (All Sizes)

Fully forged Magura IS to PM disc brake mount/adapters.

Constructed from high grade aluminium with a hard anodised finish.

Compatible with all Magura disc brakes and all other brands of brakes on the market.

IS to PM mount (international to post mount) fitting.

Available in black only with laser etched logos.

Supplied with x2 fitting bolts and washers.

Available Sizes:

QM43 – 160mm front

QM12 – 160mm rear / 180mm front

QM41 – 180mm rear

QM5 – 203mm front

QM9 – 203 rear

Weights:

QM43 – 19g (+/-)

QM12 – 19 (+/-)

QM41 – 26g (+/-)

QM5 – 26g (+/-

QM9 – TBC

Bolt and washers – 12g (+/-)

Please Note:

Some frames and forks on the market have a plus 20mm (20+) brake mount, this means the brake mount on the frame or forks is welded 20mm higher than standard.

This will require a smaller brake mount/adapter than normal.

For example if you want to run a 180mm front rotor you would normally buy a QM12 (180mm front) but if you have a plus 20+ brake mount you will need to buy a QM43 (160mm) to compensate.
